THINKCAR THINKSCAN 689BT PRO universal diagnostic equipment

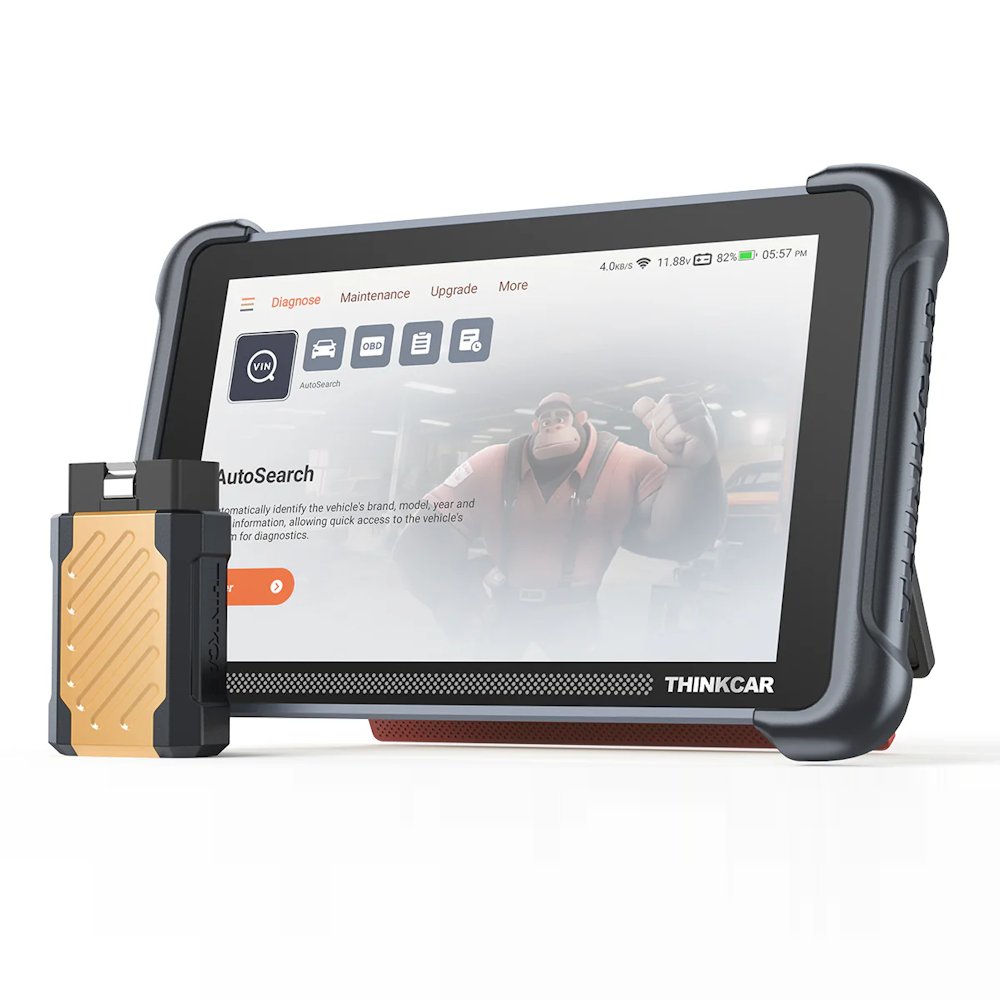

The THINKCAR THINKSCAN 689BT Pro is a wireless all-system diagnostic scanner featuring an 8-inch touchscreen, ECU coding and bidirectional control. It allows you to read and clear fault codes, monitor live data, perform active component tests and access more than 35 maintenance functions.

Lifetime free software updates provide access to the core diagnostic software without a recurring subscription. Support for CAN-FD and DoIP protocols extends compatibility to modern vehicles.

Key Features

• All-system diagnostics for the engine, transmission, ABS, SRS, body electronics and other supported systems.
• Topology mapping for a clear overview of vehicle control modules and their connections.
• ECU coding to configure supported modules and customise vehicle settings.
• Bidirectional control and active tests to operate and test components directly from the scanner.
• 35+ maintenance functions.
• CAN-FD and DoIP support.
• Wireless Bluetooth connection through the VCI adapter.
• AutoVIN and AutoScan for automatic vehicle identification and system scanning on supported models.
• FCA SGW access through AutoAuth.
• VAG and Mercedes-Benz security gateway unlocking with the appropriate licence.
• 8-inch touchscreen, 4 GB RAM and 64 GB storage.
• 2.4/5 GHz Wi-Fi for software updates.

All-System Vehicle Diagnostics

The THINKSCAN 689BT Pro offers diagnostic coverage for more than 150 vehicle brands. Depending on vehicle equipment and software coverage, supported systems include:

• Engine and automatic transmission.
• ABS braking and SRS airbag systems.
• Immobiliser and anti-theft systems.
• Body control modules, central locking and door electronics.
• Power steering and steering angle sensors.
• Tyre pressure monitoring.
• Air suspension and ride-height control.
• Climate control, lighting, wipers and comfort systems.
• Four-wheel drive and other supported control modules.

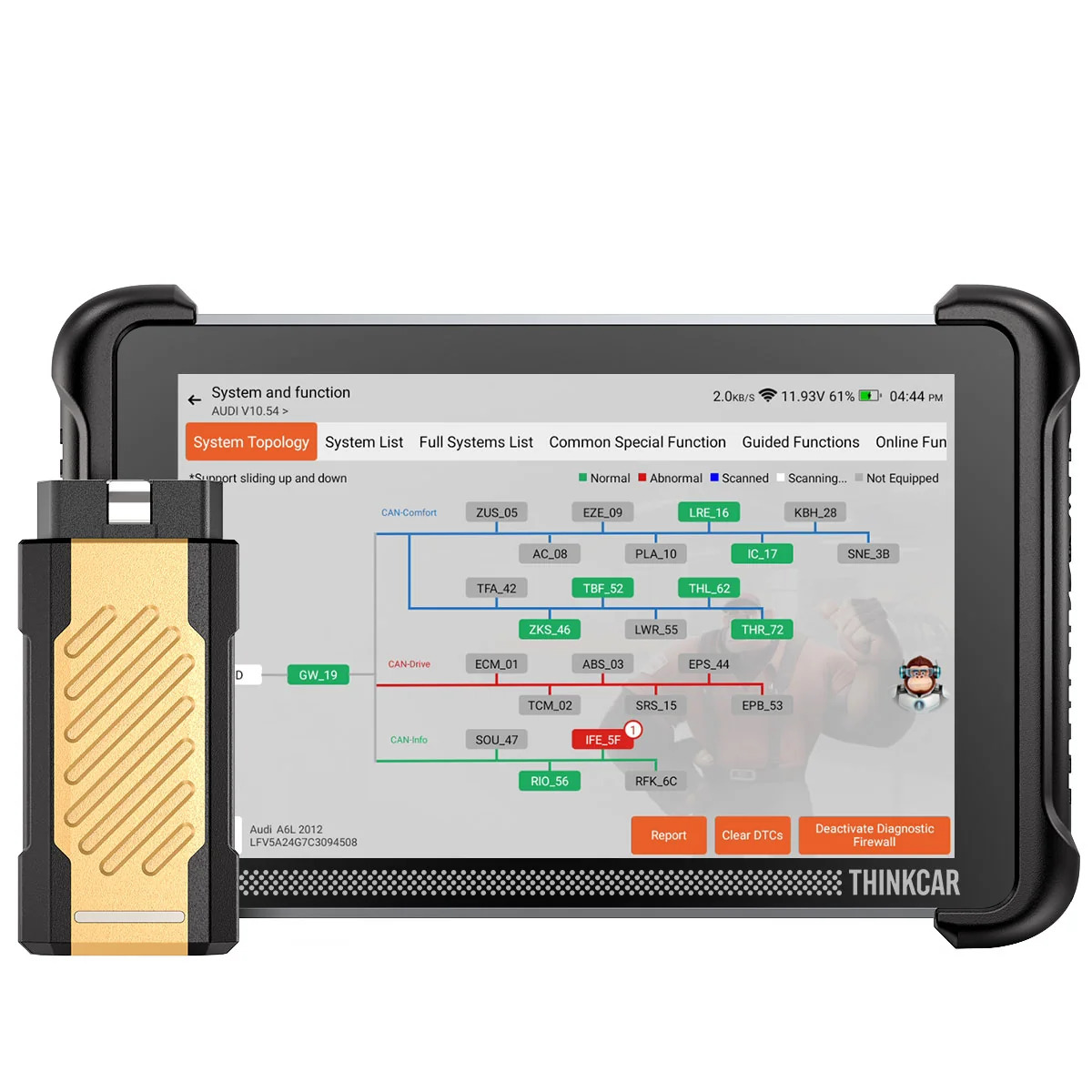

Retrieve ECU information, read and clear diagnostic trouble codes, and view live data to support fault diagnosis. Topology mapping provides a visual overview of system status and helps identify communication issues.

ECU Coding and Vehicle Customisation

ECU coding enables configuration changes on supported control modules, adaptations following module replacement and activation of selected vehicle features.

Depending on the vehicle, applications may include:

• Daytime running light and welcome lighting settings.
• Automatic door locking and unlocking options.
• Interior lighting duration.
• Comfort feature settings.
• Replacement module configuration, including PMI procedures on supported Ford models.

ECU coding does not mean universal ECU software flashing or reprogramming. Available procedures depend on the vehicle and control module.

Bidirectional Control and Active Tests

Send commands to supported vehicle modules and check how individual components respond. Active tests help narrow down faults and verify component operation without relying solely on the vehicle’s normal controls.

Supported applications may include:

• Cooling fan and relay tests.
• Injector activation tests.
• ABS pump and braking component tests.
• Window, wiper, sunroof and door lock operation.
• Lighting and mirror control.
• Air conditioning and EVAP system tests.

35+ Maintenance Functions

Access a wide range of service procedures used during routine maintenance and repairs, including:

• Oil service and maintenance interval reset.
• Electronic parking brake service mode.
• ABS bleeding.
• Battery registration and matching.
• DPF service and regeneration functions.
• AdBlue reset and NOx sensor reset.
• Injector coding.
• Throttle relearn and EGR adaptation.
• Transmission relearn and clutch adaptation.
• Steering angle sensor calibration.
• Cooling system bleeding procedures.
• Air suspension ride-height calibration.
• TPMS reset.
• Window, seat and sunroof calibration.
• Rain and light sensor adaptation.
• Start/Stop reset.
• Transport mode control.
• Additional vehicle-specific service functions.

FCA, VAG and Mercedes-Benz Security Gateway Access

FCA SGW: AutoAuth integration supports authorised access on compatible Fiat, Chrysler, Alfa Romeo, Dodge, Jeep and other FCA vehicles. This enables supported diagnostic procedures that would otherwise be restricted by the security gateway.

VAG and Mercedes-Benz: security gateway unlocking is available on supported models with the appropriate licence.

A separate account, licence or additional payment may be required. Availability depends on the vehicle, region and service terms.

Optional Accessories

Expand the scanner’s capabilities with compatible accessories, sold separately:

• TKEY101 key programming tool.
• THINKTPMS VENU iPro or THINKTPMS G2.
• Endoscope.
• Oscilloscope.
• Printer.
• Bluetooth battery testing accessory.

Technical Specifications

Supported languages: English, French, German, Dutch, Italian, Spanish, Portuguese, Japanese, Russian, Polish, Hungarian, Arabic, Greek, Slovak, Traditional Chinese, Korean, Turkish, Czech, Romanian, Swedish, Croatian, Persian, Serbian, Danish, Bulgarian, Vietnamese, Finnish and Slovenian.

Lithuanian is not included in the listed software languages.

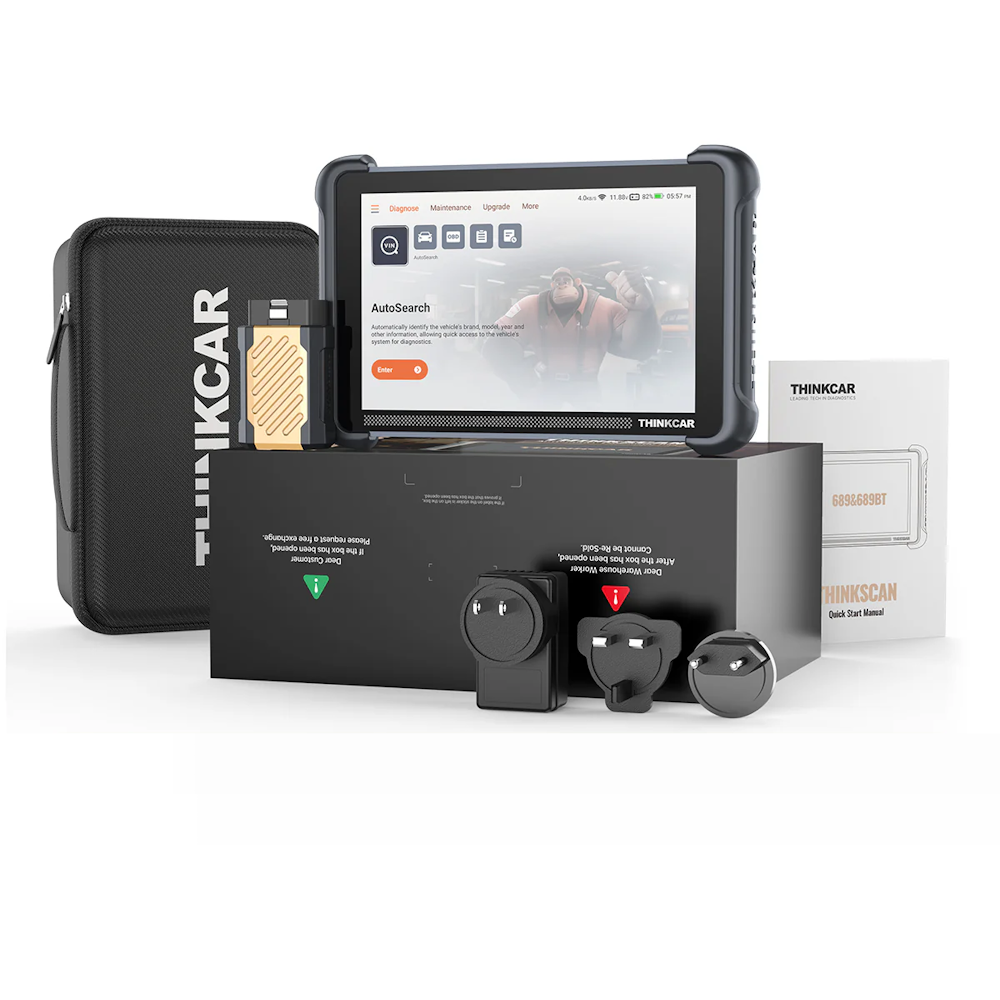

Package Contents

• THINKCAR THINKSCAN 689BT Pro main unit.
• VCI diagnostic adapter.
• Power adapter with EU, UK and US plugs.
• USB Type-C diagnostic and charging cable.
• Quick start guide.

Please note: available functions vary by vehicle make, model, year, equipment and software version. If you require a specific function, contact us to confirm compatibility before purchasing.
